Built-in unit Rhodos
0 Reviews | Add review

A handy built-in unit with a choice of power and various multi-media connections. Available in 5 different versions and in white and stainless steel.

Shipping costs

€ 0,00

€ 159,00
Price (incl. VAT) per unit
Fields marked with a * are mandatory
Quantity:
Add to cart

| More

Do you have a question about this product?

On working days we try to respond within 1 hour.

Built-in unit Rhodos

The Rhodos built-in unit is an elegant and reliable unit. You can easily integrate the Rhodos in worktops with a maximum thickness of 40 mm. The steel Rhodos is made of sanded stainless steel or has a powder coating. The white version has matching white switch material, the stainless steel version comes standard with black switch material.

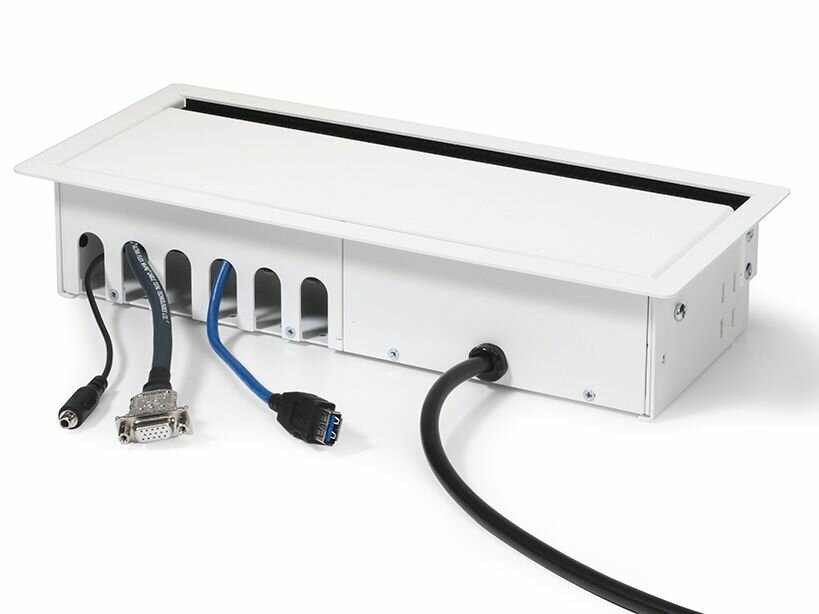

The Rhodos built-in unit is equipped as standard with a 1 m connecting cable with a GST18-3 male connector. All other connections including data, HDMI, VGA / audio, USB and audio are bus - bus connections. This means that without tools you simply make the connections with prefab cables.

upboard hout
upboard hout sta tafel

Versies

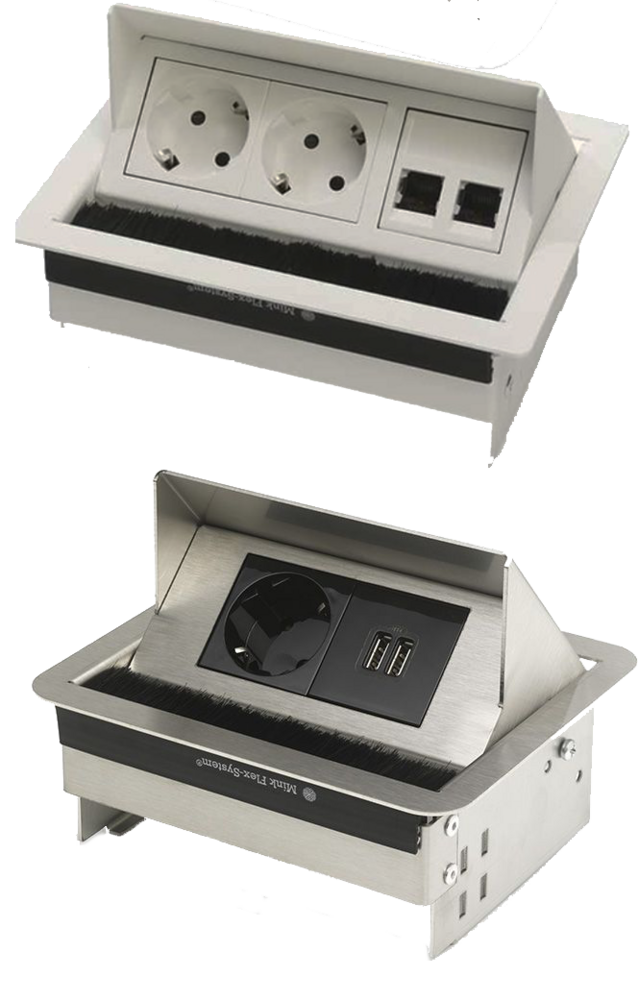

  • Version 1: 2x 230V grounded WCD
  • Version 2: 2x 230V grounded WCD + 2x CAT6 UTP
  • Version 3: 1x 230V grounded WCD + 1x 2-voudige USB charger
  • Version 4: 2x 230V grounded WCD + 1x CAT6 UTP + 1x HDMI+ 1x VGA/Audio
  • Version 5: 2x 230V grounded WCD + USBCharger + 2x CAT6 UTP + 1x USB3.0 + 1x HDMI + VGA/Audio


Measurements

  • Version 1 and 3:
    - Outside dimension supporting edge: 144 x 172.3 mm
    - Cutter size frame: 127 x 153 mm
  • Version 2:
    - Outside dimension supporting edge: 144 x 192.3 mm
    - Cutter size frame: 127 x 172 mm
  • Version 4:
    - Outside dimension supporting edge: 144 x 237.3 mm
    - Cutter size frame: 127 x 218 mm
  • Version 5:
     - Outside dimension supporting edge: 144 x 327.3 mm
    - Cutter size frame: 127 x 307 mm
