Built-in unit - Evia
0 Reviews | Add review

The embedded unit Evia is manufactured in the Netherlands, a product that stands for quality and reliability. With this built-in unit, you can quickly supply every workstation with a 230V connection.

Shipping costs

€ 5,95

€ 93,00
Price (incl. VAT) per piece
Quantity:
Add to cart

| More

Do you have a question about this product?

On working days we try to respond within 1 hour.

The embedded unit Evia is manufactured in the Netherlands, a product that stands for quality and reliability. The embedded unit can easily be integrated into tabletops with a maximum thickness of 40 mm. With this built-in unit, you can quickly supply every workstation with a 230V connection. Compact and cleverly integrated into a small casing.

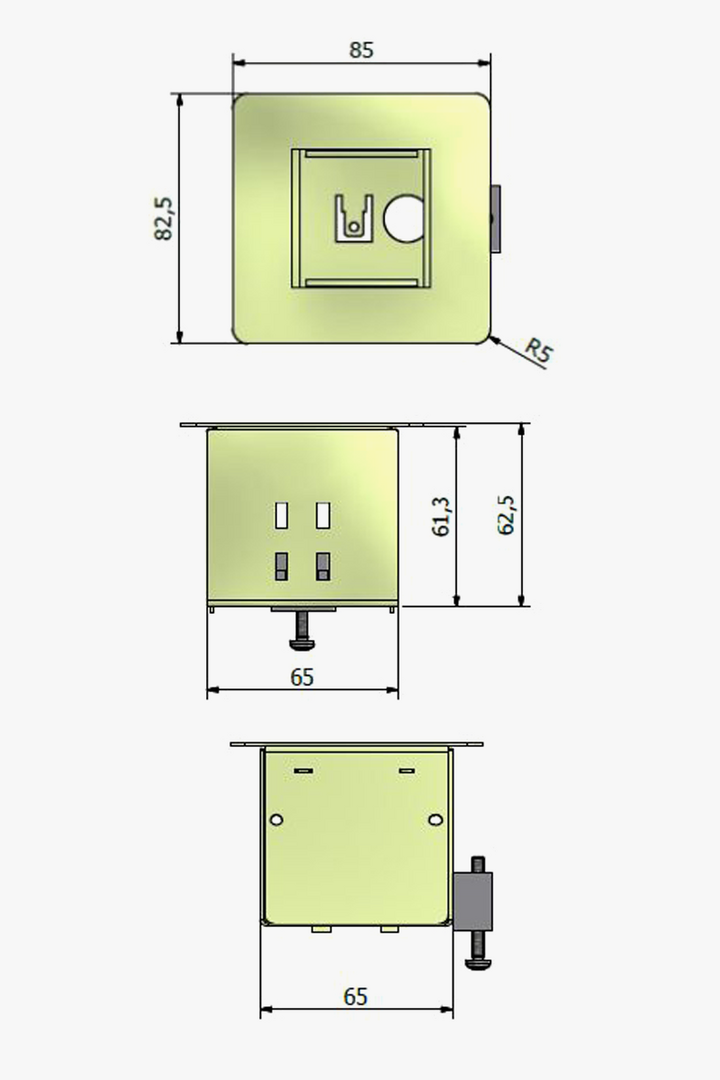

Dimensions Evia built-in unit

1-way
- Installation size: 67 x 67 mm
- External dimensions of the bearing: 85 x 82.5 mm

2-way
- Installation size: 112 x 67 mm
- Outside dimension support: 130 x 82.5 mm

4-way
- Installation size: 212 x 67 mm
- Outside dimension support: 230 x 82.5 mm

Versions Evia built-in unit

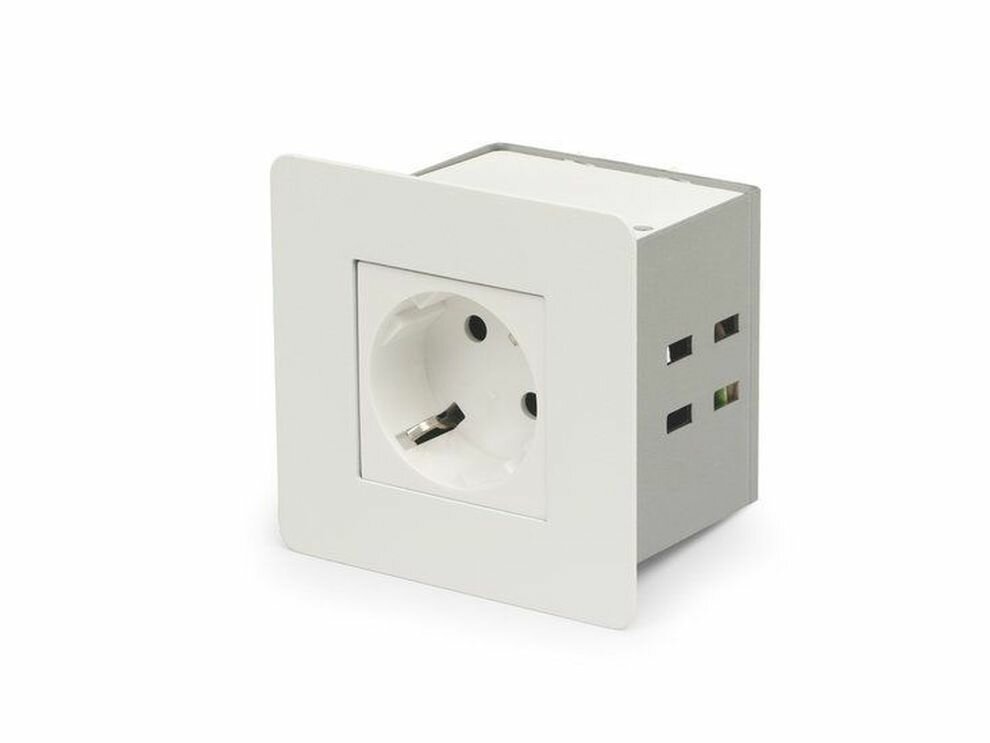

- 1x 230V (1-way)
- 2x USB charger (1-way)
- 2x 230V (2-way)

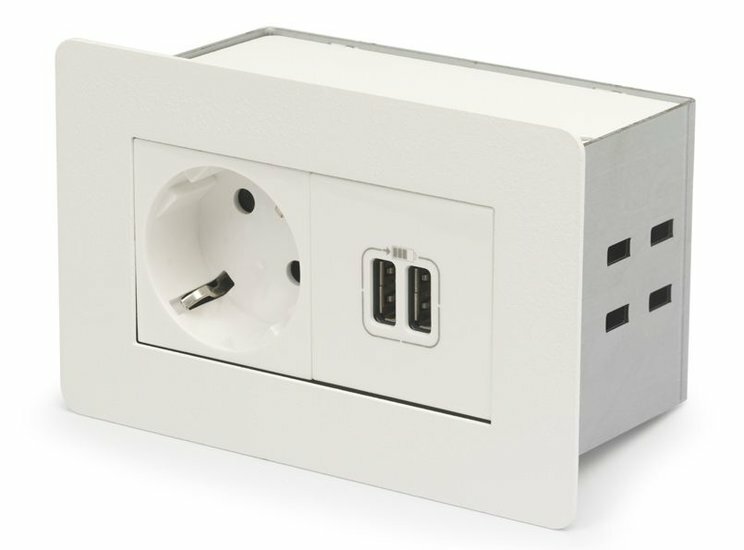

- 1x 230V + 2x USB charger (2-way)
- 1x 230V + 2x data CAT6 (2-way)
- 1x 230V + 1x data CAT6 + 1x USB 3.0 (2-way)

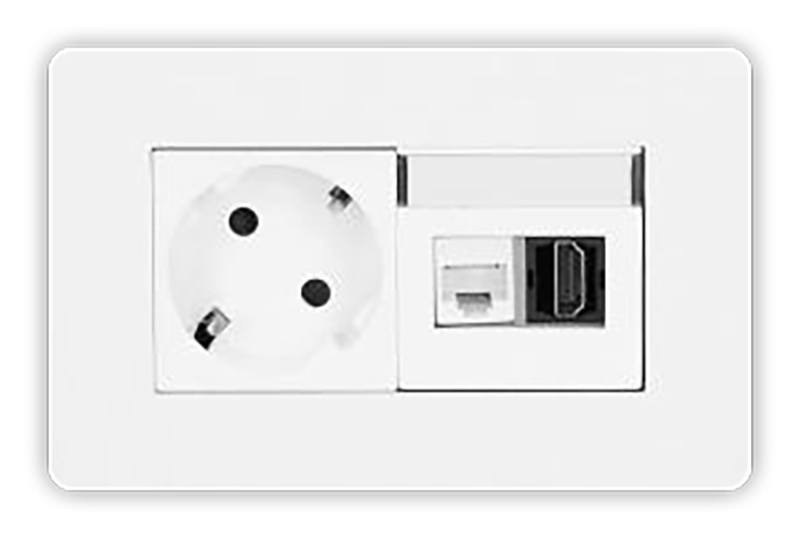

- 1x 230V + 1x data CAT6 + 1x HDMI (2-way)
- 1x 230V + 1x cable entry (2-way)
- 4x 230V (4-way)

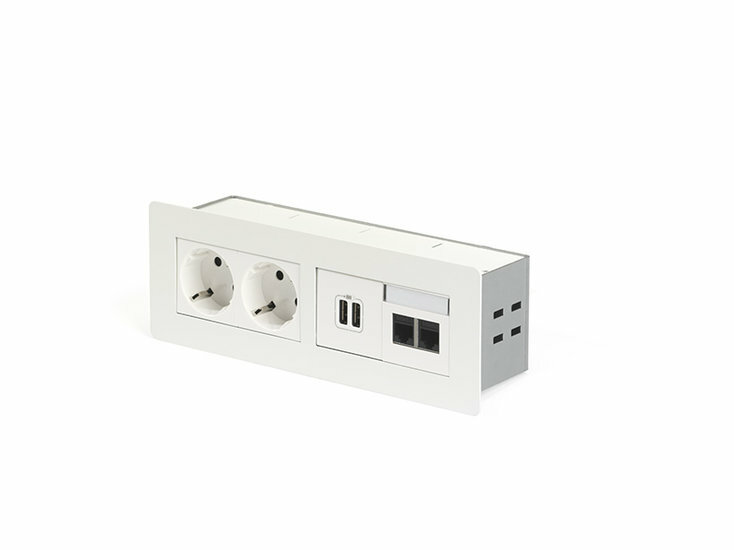

- 3x 230V + 2x data CAT6 (4-way)
- 3x 230V + 1x data CAT6 + 1x USB 3.0 (4-way)

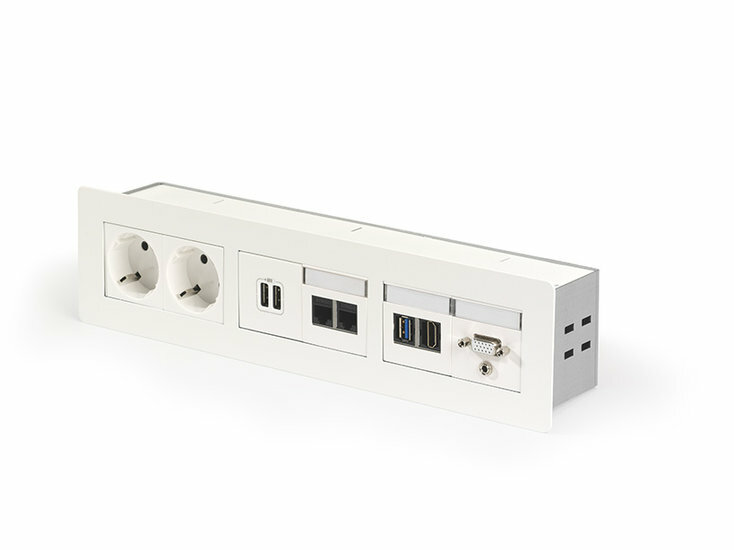

- 2x 230V + 2x data CAT6 + 1x USB3.0 + 1x HDMI (4-way)

Other features

- Color White (RAL 9016) with glossy white switching material.
- The Evia built-in unit are located flush; the front of the frame (flush = equals level).
- Can be integrated in sheets with a maximum thickness of 40 mm
- Total frame depth Evia embedded unit: 62.0 mm
